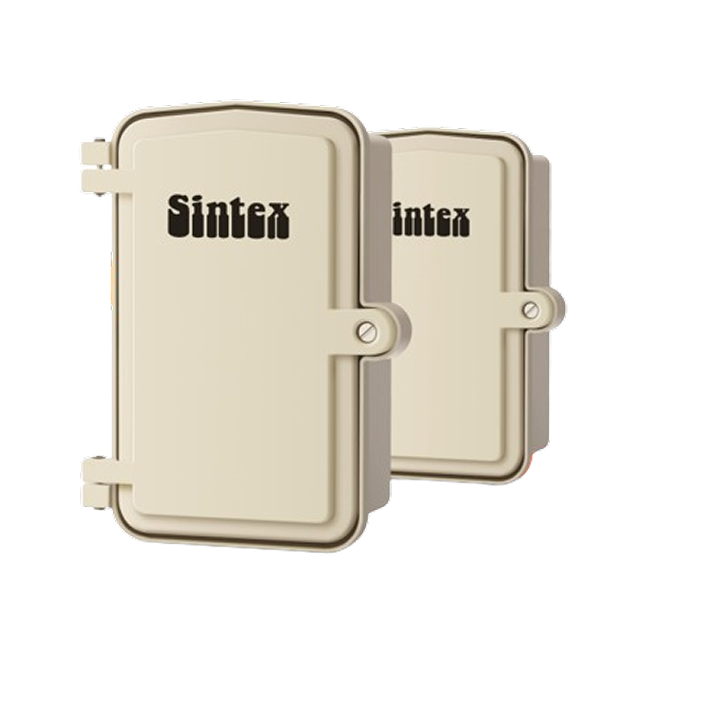

SMC Junction Boxes

Features:

Shockproof and rustproof
Rotproof and termite resistant
Cable entry from bottom and/or sides
100% weatherproof
Pole mounting arrangement
Tamper proof

Pilferage proof
Restricts unauthorised tapping
Maintenance-free
Fire retardant – Class FV-0 as per IS:11731 Part-II or V-0 as per UL-94
High heat distortion temperature (200°C as per IS:10192)

Enquire Now

RANGE & SPECIFICATIONS

Code No.

Inside Dimensions
(mm) H x W x D

Applications

SIDE HINGED – DOOR FIXED TO BASE WITH HINGES

GSJB-1414	140 x 140 x 95
GSJB-2014	200 x 140 x 95

Junction box/cut-out box/fuse box for single phase/2 core low wattage FTL/CFL based lighting system for pedestrian/pathway illumination

GSJB-1414	240 x 130 x 110
GSJB-2520	250 x 200 x 105
GSJB-3020[1] (right hinged)	300 x 200 x 105

Pole mounted junction box/cut-out box/fuse box for road/street lighting for 3 phase/4 core high wattage HPSV/HPMV/MH based lighting system for industrial applications

TOP HINGED – DOOR FIXED TO BASE WITH HINGES ON TOP

GSJB-1616-T

155 x 155 x 100

Junction box/cut-out box/fuse box for single phase/2 core low wattage FTI/CFL based lighting system for pedestrian/pathway illumination

GSJB-3016-T

275 x 135 x 110

Pole mounted junction box/cut-out box/fuse box for road/street lighting for 3 phase/4 core high wattage HPSV/HPMV/MH based lighting system for industrial, commercial as well as

SLIDING – DOOR FIXED TO BASE BY MEANS OF SLIDING

GSJB-3416

340 x 160 x 90

Pole mounted junction box/cut-out box/fuse box for road/street lighting for 3 phase/4 core high wattage HPSV/HPMV/MH based lighting system for industrial, commercial as well as Provision for fixing 2 cut-outs, one for lighting and other for kiosks/signage/emergency power supply

REMOVABLE – DOOR FIXED TO THE BASE BY MEANS OF HARDWARE

GSJB-1510-R	155 x 100 x 60
GSJB-1816-R	185 x 165 x 60
GSJB-2818-R	280 x 180 x 60

Control terminal box/cut-out box
