Water Tank Stands: Height, Material & Installation Guide
Share
Table of Contents
A water tank filled to capacity can weigh several tonnes. Put it on a poorly built stand and you’re not just risking a leak, you’re risking a collapse. Get the height wrong instead, and every tap on the top floor turns into a weak trickle. A water tank stand is the raised platform, usually built from RCC, mild steel, or reinforced plastic, that holds a water tank at a height sufficient for gravity-fed water pressure. This guide covers how tall that stand actually needs to be, which material suits your building, and what to check before you install one.
Key Takeaways
- Stand height depends on building floors, not just tank capacity
- RCC and steel remain the strongest options for large tanks
- Every extra foot of height improves gravity water pressure
- Loose or corroded stands are a common cause of tank collapse

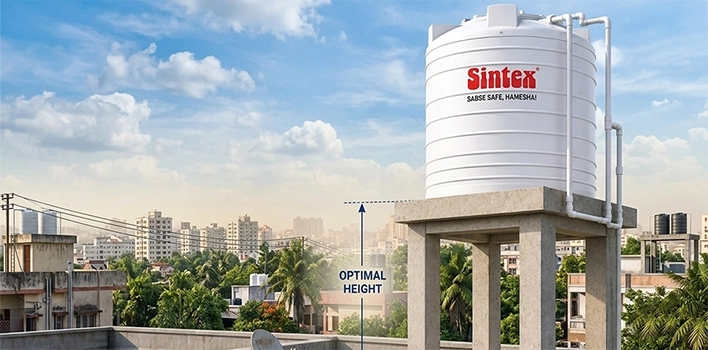

What Is a Water Tank Stand?
A water tank stand is a fixed support structure, typically made of reinforced cement concrete, mild steel, or heavy-duty plastic, designed to elevate a water storage tank above ground or terrace level. Its job goes beyond simply holding weight. The stand needs to keep the tank level, allow room for inlet and outlet pipe fittings underneath, and provide enough elevation for water to flow through the plumbing system using gravity alone, without a pump running constantly.
Most Indian homes use one of two setups: a terrace-mounted stand a few feet tall, or a standalone ground-level tower for homes without adequate elevation. Either way, the stand is doing structural work, not just decorative placement.
Why Does a Water Tank Need a Stand?
Setting a tank directly on the ground or a bare terrace floor causes problems that aren’t always obvious until months later.
Pressure is the first issue. Water pressure in a gravity-fed system comes from height, the vertical distance between the tank’s base and the outlet tap. A tank sitting flat on the ground generates close to zero pressure. Raise it even a few feet and taps start working properly.
Hygiene is the second concern. A tank resting directly on soil or a damp terrace floor is exposed to moisture, insects, and ground contamination in a way an elevated tank isn’t. Stands keep the tank’s base dry and away from standing water during monsoon season, when flooding around ground-level tanks is a genuine risk in a lot of Indian cities.
Pipe access matters too. Plumbers need clearance underneath the tank to fit and service the outlet valve, and that’s simply not possible if the tank is sitting flush against a floor. A stand also keeps the tank clear of debris, rodents, and pests that tend to collect around low, unguarded surfaces.
None of this is optional if you actually want the plumbing to work the way it’s supposed to.
Types of Water Tank Stands by Material
Material choice affects cost, durability, and how much weight the stand can safely carry over time. Here’s how the common options compare.
| Material | Durability | Approx. Cost | Load Capacity | Maintenance |
| RCC (Reinforced Concrete) | Very high, decades of use | Highest | Excellent for large tanks | Low, but cracks are hard to repair |
| MS / Steel | High, if properly coated | Moderate to high | Very good | Needs anti-rust treatment periodically |
| Brick Masonry | Moderate to high | Moderate | Good for small-medium tanks | Low, but height is harder to adjust |
| PVC / Plastic Stand | Moderate | Lowest | Suited to smaller tanks only | Minimal, but UV exposure degrades over years |
RCC stands dominate large-capacity, permanent installations, apartment complexes and independent houses building for the long haul. Steel stands are popular where speed of construction matters, since they go up faster than concrete. A plastic water tank stand works fine for smaller loft tanks or portable setups, but it isn’t the right call for anything above a few hundred litres sitting several feet in the air. Brick stands remain common in smaller towns, largely because local masons already know how to build them.
Water Tank Stand Height: How Tall Should It Be?
There’s no single fixed number here. The right water tank stand height depends mainly on how many floors the water needs to reach, since gravity pressure builds with elevation.
| Building Type | Typical Stand Setup | Approximate Head Available |
| Single storey (G) | Standalone ground tower, 8–12 ft | Enough for reasonable ground-floor pressure |
| G+1 | Terrace platform, 3–4 ft | Adequate for both floors |
| G+2 | Terrace platform, 2–3 ft | Strong pressure across all floors |
| G+3 and above | Terrace platform, 2–3 ft | Height rarely the limiting factor here |
For a single-storey home without a proper terrace, the whole burden falls on the stand itself, which is why standalone towers for independent houses tend to run much taller than a terrace platform on a multi-storey building. Once a building has two or more floors, the structure’s own height usually does most of the work, and the stand just needs enough clearance for pipe fitting underneath.
Standard Height for Terrace/Overhead Tanks
A terrace tank doesn’t usually need a tall stand, since the building itself provides the elevation. What the stand needs to provide is clearance, for the outlet pipe, for cleaning access, and sometimes for a booster pump if one’s installed at the base.
How much clearance depends on what the system actually needs to do. A basic setup feeding a handful of taps through plain gravity flow doesn’t need much lift at all. A system that also has to feed a geyser or a shower with reasonable pressure usually needs more headroom. And a larger building running multiple flats off a single tank, without any pump assistance, needs the most.
| Use Case | Recommended Stand Height (above terrace floor) |
| Basic gravity flow (taps only) | 2 ft |
| Includes geyser or pressure shower | 3–4 ft |
| Multi-tap system without pump backup | 4–5 ft |
These are practical starting ranges rather than fixed rules, and they can shift depending on tank capacity, the number of outlets, and the specific plumbing layout of the building. A local plumber or structural consultant can fine-tune the number based on the actual site, but these ranges give a reasonable starting point for planning.
Worth noting: taller isn’t automatically better. Going higher than necessary just adds unnecessary structural load and cost without a meaningful pressure benefit once you’re already clearing the basic requirement.
How Height Affects Water Pressure (Gravity Flow)
The physics here is simple enough to explain without any formulas. Water pressure in a gravity-fed system comes down to one thing: the vertical distance between the surface of the water in the tank and the outlet point of the tap.
More height means more pressure. That’s it. A tank sitting three feet above a ground-floor tap generates noticeably weaker flow than one sitting eight feet above it. This is why upper-floor taps in a building often run weaker than ground-floor ones fed from the same tank, the vertical distance to the tap has shrunk, so has the pressure pushing the water out.
It’s also why raising a stand by even a couple of feet can meaningfully improve weak water flow in a home, without touching the plumbing at all.
Overhead Tank Stand Design: Structural Considerations
An overhead tank stand carrying a filled 1000 or 2000-litre tank is holding serious weight, often a tonne or more once you account for the tank, water, and fittings together. Load-bearing capacity has to be calculated properly, not estimated by eye.
Wind load becomes a real factor for tall standalone stands, especially in coastal regions or areas prone to strong seasonal winds. Seismic considerations matter too, particularly for RCC stands in earthquake-prone zones, where the stand’s base and reinforcement need to be designed to handle lateral movement, not just vertical weight.
Foundation work is where a lot of poorly built stands fail. A stand needs a foundation sized to the tank’s full weight when filled, not its empty weight, and that foundation needs to sit on stable, compacted ground rather than loose fill. For anything beyond a small domestic tank, getting a structural engineer to sign off on the design isn’t excessive caution, it’s basic risk management.
Loft Tank Stand vs Overhead Tank Stand
These two get confused often enough that a direct comparison helps.
| Aspect | Loft Tank Stand | Overhead Tank Stand |
| Typical location | Indoor, between ceiling and roof slab | Outdoor, on terrace or rooftop |
| Height needed | Minimal, fits within loft space | 2–5 ft above terrace floor |
| Load support | Slab or shelf-based, lighter tanks | Dedicated structural stand, heavier tanks |
| Typical capacity | 150–1000 L | 500 L and above |
| Weather exposure | None, protected indoors | Full exposure, needs UV/weather-resistant material |
A loft tank stand is really more about slab support than a freestanding structure, since the loft space itself does most of the structural work. For a deeper look at loft installation specifically, [see our dedicated guide to loft tank setup]. An overhead tank stand is a different category entirely, built to handle exposure and often much heavier loads.
Water Tank Holder / Support Options for Small Tanks
Smaller tanks, particularly compact loft or bathroom-use tanks, don’t always need a full stand. A basic water tank holder, sometimes just a reinforced shelf bracket or a slab support, is often enough for tanks under a couple hundred litres. The key requirement stays the same regardless of scale: whatever’s holding the tank needs to support its full weight when completely filled, not just when it looks lightweight and empty.
Expert Tips for a Safe, Long-Lasting Tank Stand
A few habits go a long way toward keeping a tank stand safe for years. Inspect steel stands for rust at least twice a year, more often in coastal or high-humidity areas. Check RCC stands for hairline cracks after every monsoon season. Never assume a stand built for a 500L tank can safely hold a 1000L upgrade without reassessment. Keep the area underneath the tank clear for pipe access and periodic checks, and avoid painting over visible rust without treating it first.
Conclusion
Tank stands aren’t the most exciting part of setting up a water storage system, but they’re arguably the part that matters most for safety and everyday water pressure. Traditional brick and RCC stands still have their place, and they’re not going anywhere. What actually determines long-term reliability is choosing the right height and material for your specific building, and pairing that stand with a tank built to last just as long, which is exactly where Sintex’s range of loft and storage tanks fits in.
Also, Read: Why the Right Water Tank and Pipe System Matters?
There isn't one fixed standard, it depends on the building. Terrace-mounted stands typically run 2–5 feet depending on pressure needs, while standalone ground stands for single-storey homes often go 8–12 feet to generate adequate gravity flow. A plumber can confirm the right height for your specific setup.
That depends entirely on the stand's design and material. A properly engineered RCC or steel stand for a 1000-litre tank should support well over a tonne once the tank is filled with water. Never assume load capacity, always confirm it against the tank's full weight before installation.
Yes, generally. Even a terrace floor placement needs a small platform stand for pipe clearance, drainage, and basic elevation for pressure. Setting a tank flat on bare terrace flooring restricts plumbing access and reduces gravity flow to taps below, even though the building height already provides some pressure.
It's based on the pressure needed at the farthest or highest outlet point, plus clearance for pipe fittings underneath. Builders typically start with a base height for basic gravity flow and add more for geysers, showers, or multi-unit systems that need stronger, more consistent pressure.
As a general guide, 2 feet above the outlet point is usually enough for basic tap flow, while systems feeding geysers or pressure showers do better with 3-4 feet or more. Actual requirements vary by fixture type, so checking with a plumber is worth the extra step.
Technically yes, but it's not advisable. Without a stand, you lose gravity pressure, pipe access becomes difficult, and the tank sits exposed to ground moisture, pests, and flooding risk. Even a basic platform improves hygiene, pressure, and maintenance access significantly compared to a tank resting directly on the ground.
For small domestic tanks under 500 litres on a simple platform, usually not. For larger tanks, tall standalone towers, or stands in seismic or high-wind zones, getting a structural engineer involved is strongly recommended. The cost is small compared to the risk of a poorly designed stand failing later.
Both need a stand engineered for their full filled weight, roughly a tonne for 1000 litres and around two tonnes for 2000 litres, plus the tank's own weight. Exact dimensions depend on the stand material and design, so it's best confirmed with a local fabricator or engineer.
